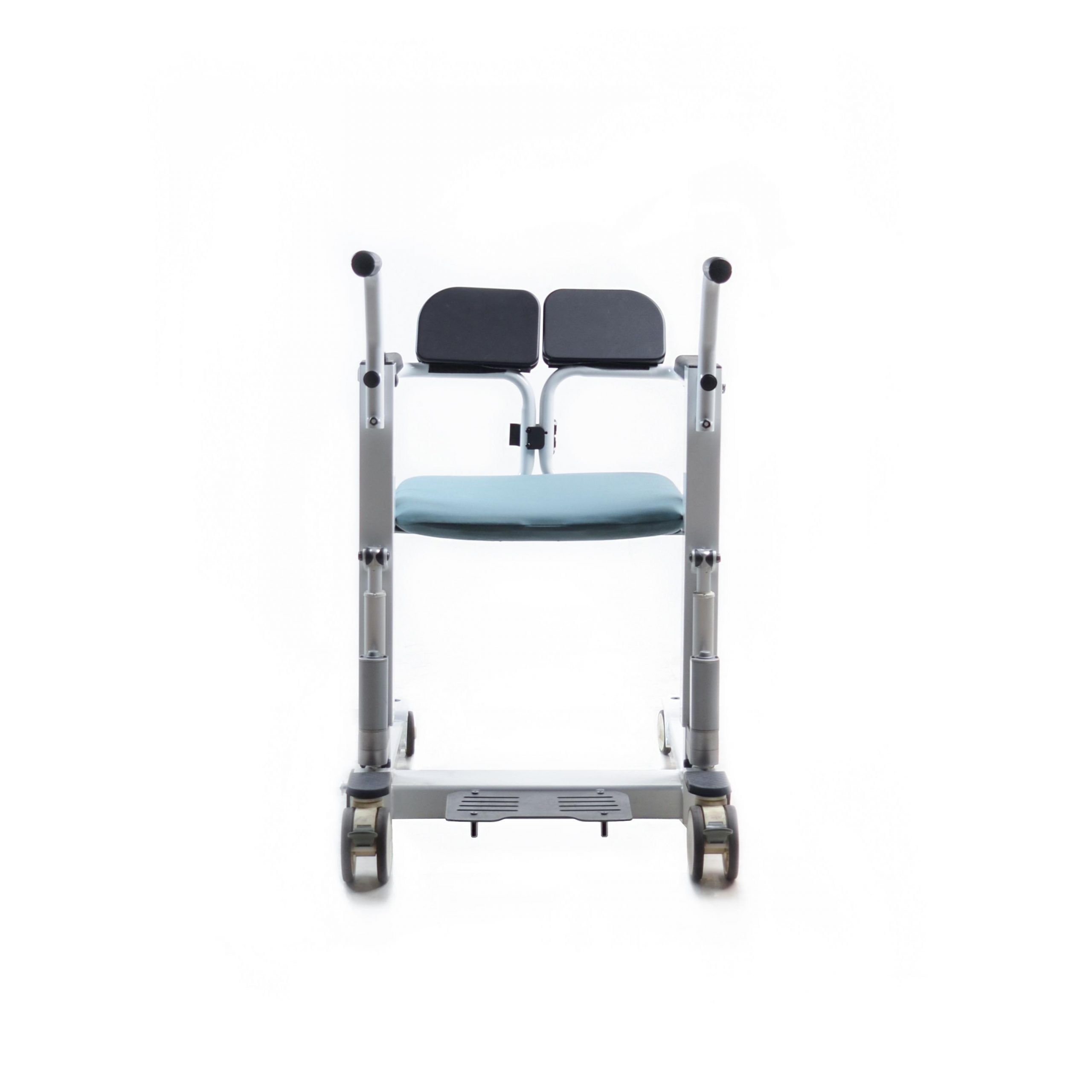

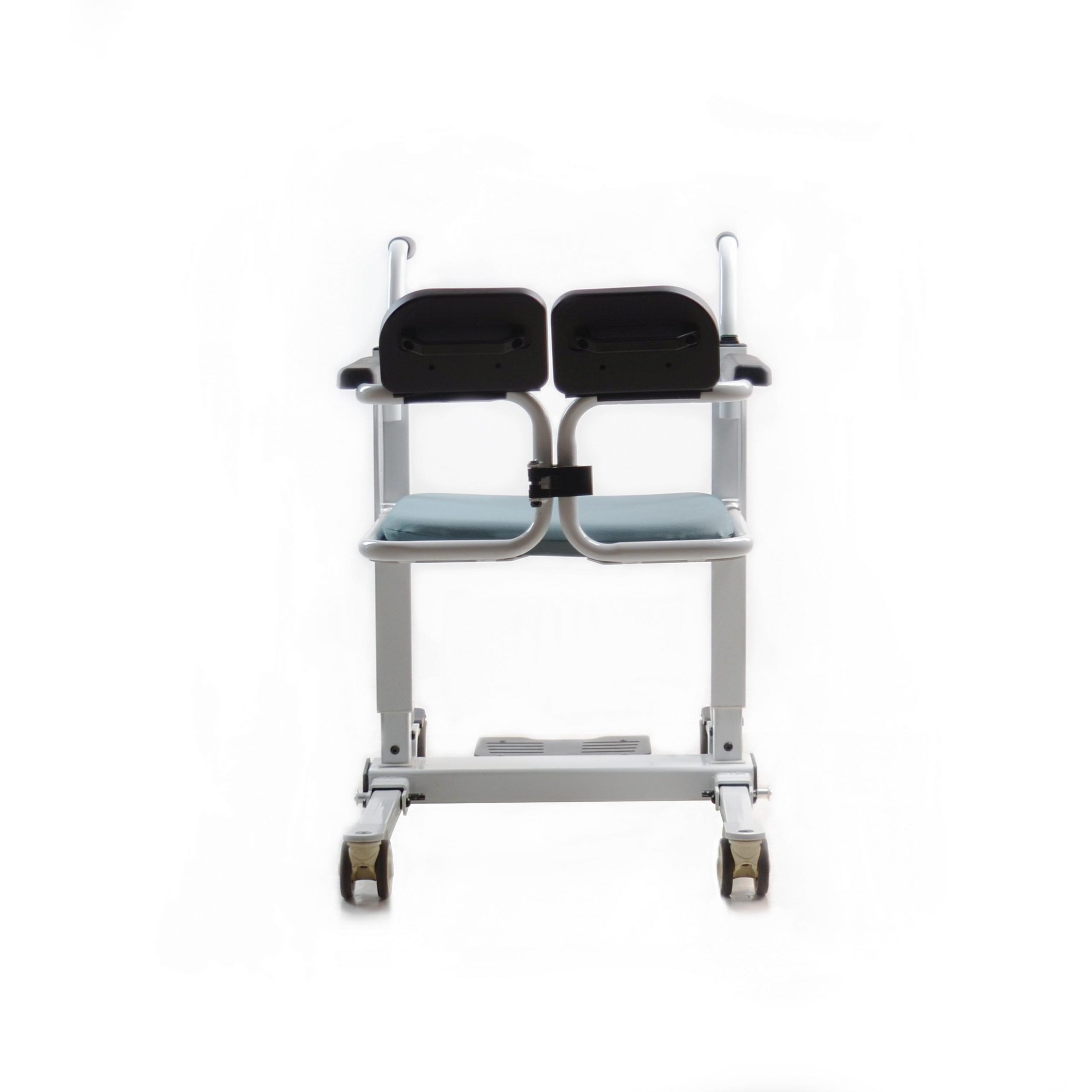

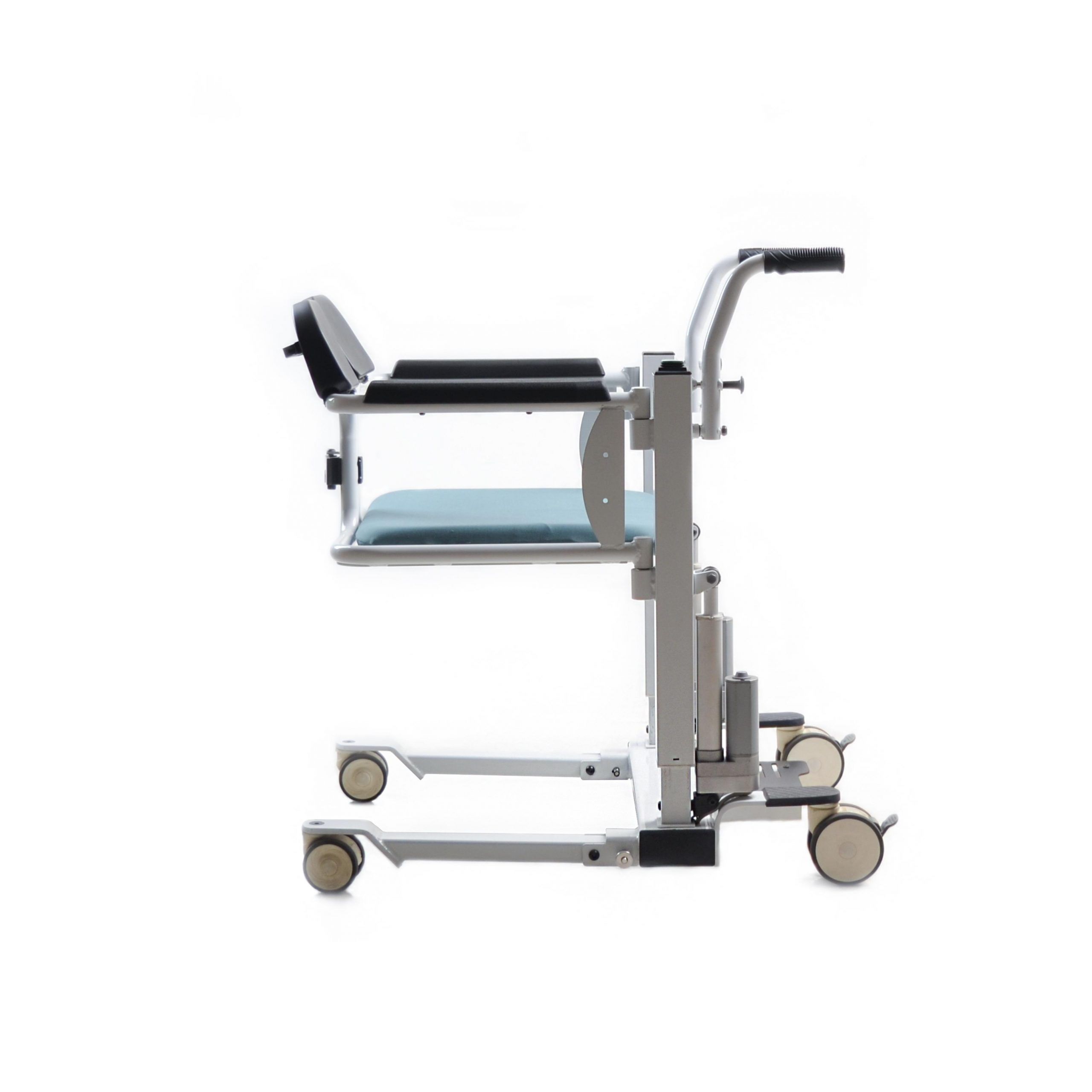

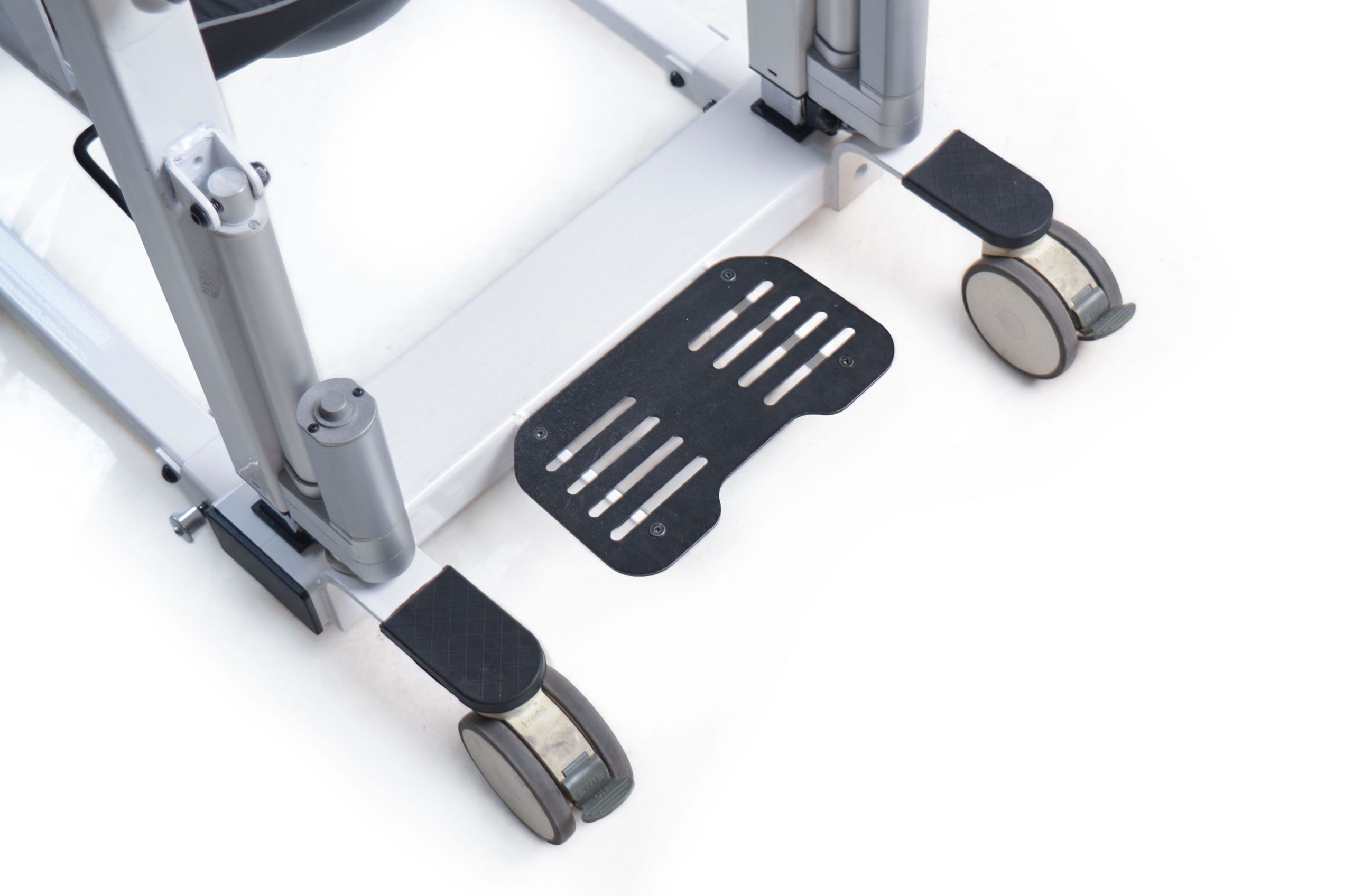

Patient Lift Y410: Efficient Patient Handling Solution

Name: Y410
Brand: INTCO Medical
SKU: Y410

Y410

Lift: Y410

The Lift Y410 offers effortless patient handling with its one-key lifting feature, 120 kg load capacity, and 150 mm lifting range. It enhances caregiving efficiency with an ergonomic design, adjustable height, and a metal safety buckle for secure transfers. Its space-saving foldable design makes it ideal for home care.

Frame: Steel, powder coating
Seat to Floor Height: 420mm-570mm
Total Length: 730mm
Total Width: 560mm
Total Height: 810mm
Folded / Dismantled Length: 360mm
Folded / Dismantled Width: 560mm
Folded / Dismantled Height: 680mm
Leg Height / Frame Height: 900mm
Supply Voltage: 24V
Maximum Load: 120kg
Lifting Range: 150mm
Battery Capacity: 24V4.4Ah
Total Weight: 35kg
Package: 600*430*760mm

Chat Now
Leave a message
Email
Solution

Key Features

Y410

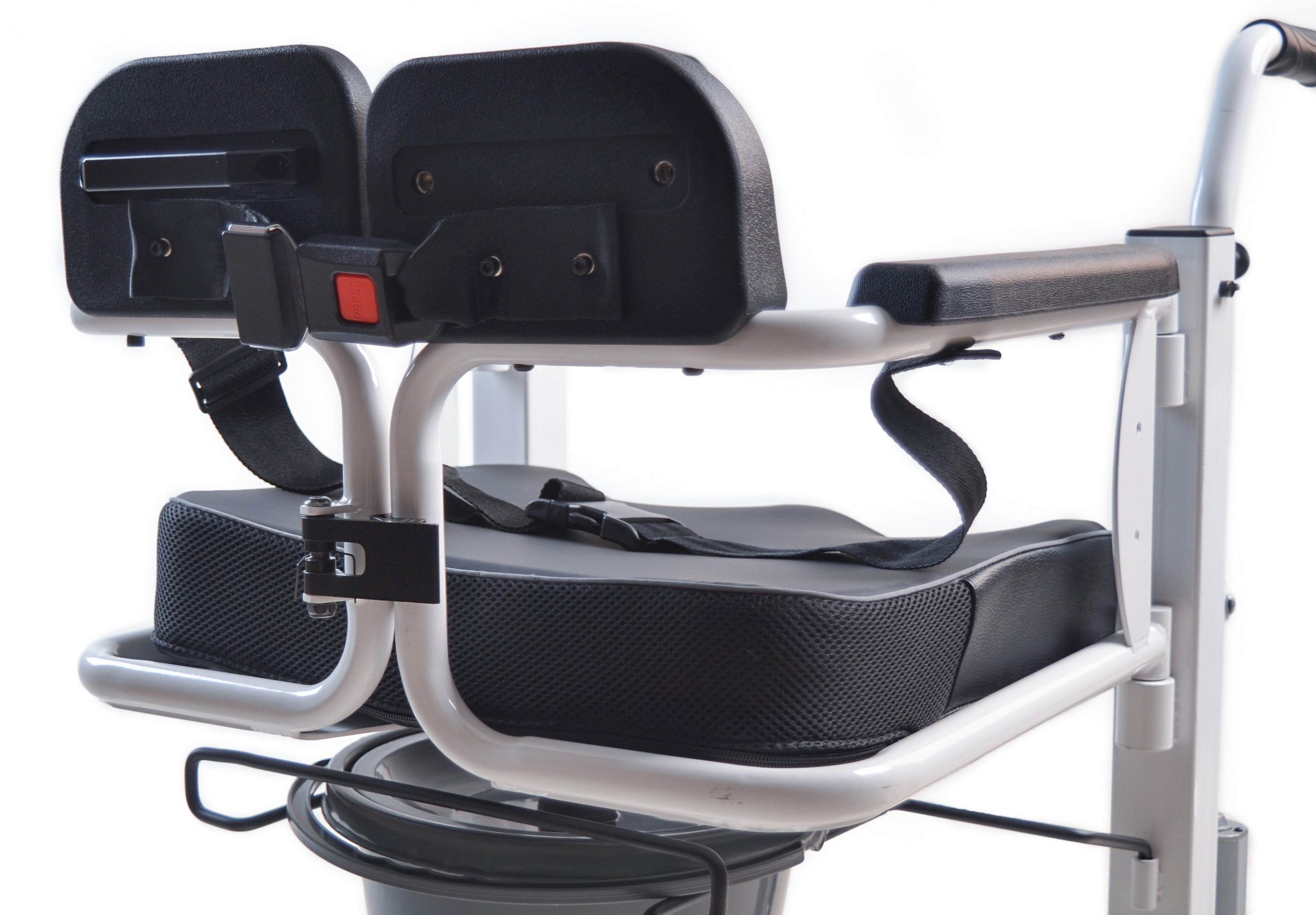

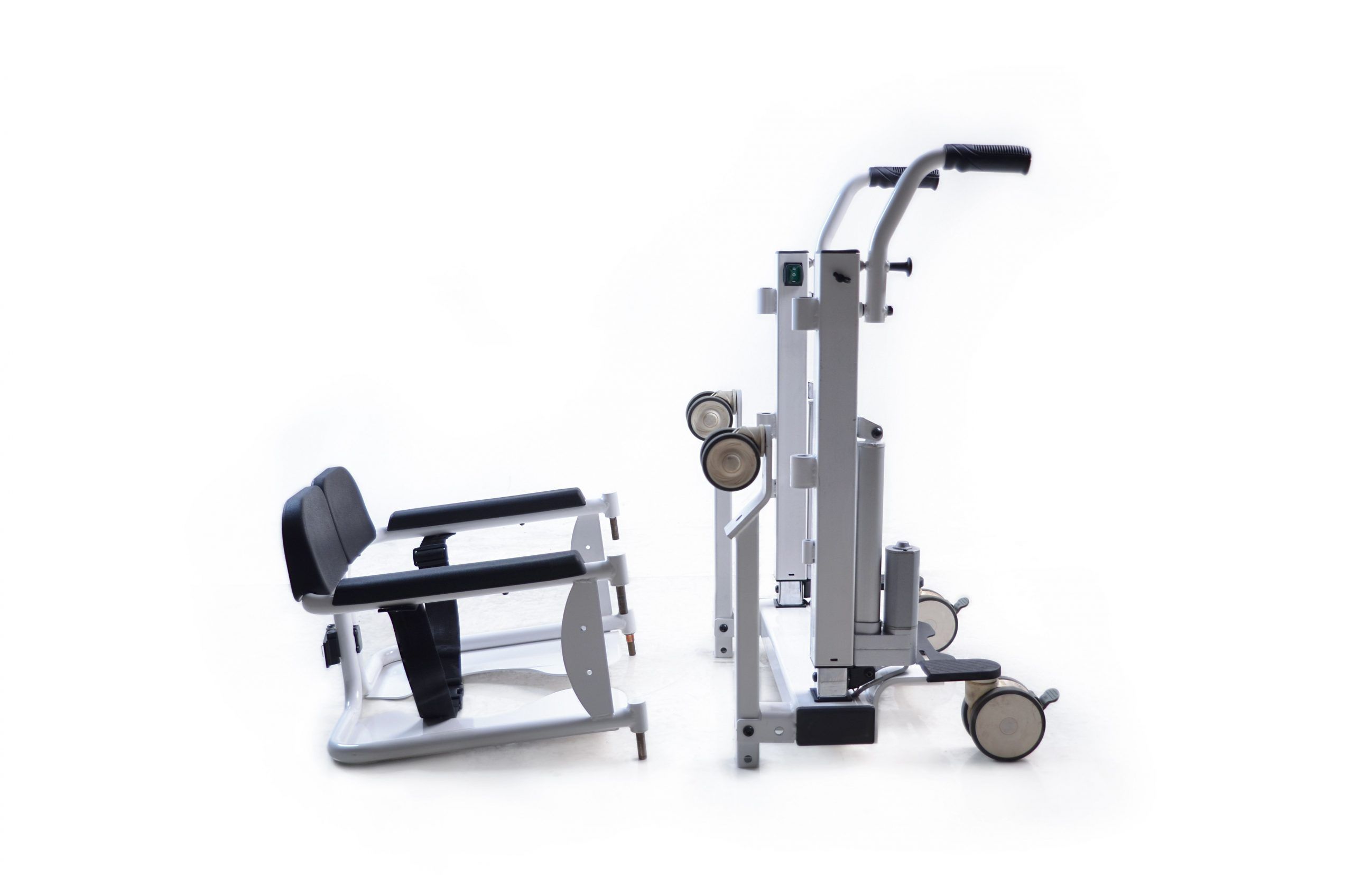

Empower your caregiving with the Lift Y410, designed to simplify patient handling. With a 120 kg load capacity and 150 mm lifting range, this lift ensures safe and efficient transfers. Its one-key lifting feature minimizes strain on caregivers, while the adjustable height and ergonomic design provide comfortable support for patients. The metal safety buckle guarantees secure positioning during transfers, offering peace of mind to caregivers and loved ones alike. Additionally, its space-saving design folds easily into three sections, making it perfect for home care settings. The Lift Y410 combines convenience, safety, and dignity in one reliable solution.

Product Parameters

Total Length(mm)	Total Width(mm)	Total Height(mm)	Supply Voltage	Maximum Load(kg)	Lifting Range(mm)	Battery Capacity	Total Weight(kg)	Package(mm)
730	560	810	24V	120	150	24V4.4Ah	35	600430760
